Tofd Ultrazvukové sondy, klíny

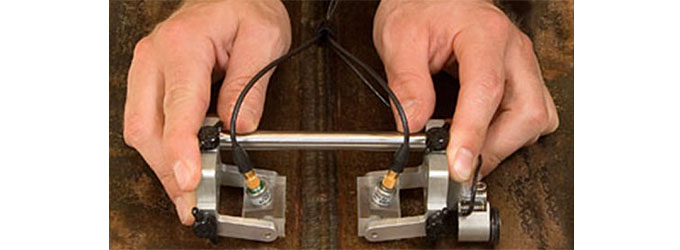

TOFD Transducers are high damped transducers with excellent resolution in TOFD (Time of Flight Diffraction Technique) application. The TOFD probes are used with wedges that generate refracted longitudinal waves in steel.

Linear small phased array transducers

Designation	Frequency	crystal Ø	Connector
TOFD 10-2D	2 MHz	10 mm	Microdot
TOFD 6-5D	5 MHz	6 mm	Microdot
TOFD 3-10D	10 MHz	3 mm	Microdot

Wedges TOFD Transducers

Designation	Angle	for transducers
WTOFD 45°-10mm	45°	TOFD 10-2D
WTOFD 60°-10mm	60°	TOFD 10-2D
WTOFD 70°-10mm	60°	TOFD 10-2D
WTOFD 45°-6mm	45°	TOFD 6-5D
WTOFD 60°-6mm	60°	TOFD 6-5D
WTOFD 70°-6mm	60°	TOFD 6-5D
WTOFD 45°-3mm	45°	TOFD 3-10D
WTOFD 60°-3mm	60°	TOFD 3-10D
WTOFD 70°-3mm	60°	TOFD 3-10D

All above items as STARMANS brand. The body of each probe will have the same diameter to fit to whatever immersion wedge for TOFD application, i.e. the same screw as well.
