Air Coupled Ultrazvukové sondy, klíny

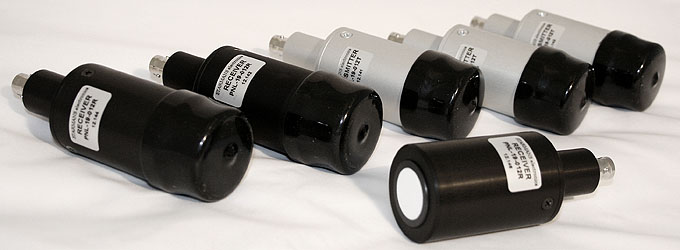

Air-Coupled Transducers are dual element transducers in two separate housing, works as transmitter and receiver. Air-coupled transducers typically operate at frequencies bellow 1 MHz and are used for testing of composite, honeycombs, foams, plastics and timber. Generally there are three methods of testing – through transmission, shear waves by offsetting, plate waves.

Designation	Dimensions (mm)	Connector	Frequency	Type
PNL 11-02 R 200KHz	Ø 11 mm	BNC	200 KHz	Receiver
PNL 11-02 T 200KHz	Ø 11 mm	BNC	200 KHz	Transmitter
PNL 19-012 R 120KHz	Ø 19 mm	BNC	120 KHz	Receiver
PNL 19-012 T 120KHz	Ø 19 mm	BNC	120 KHz	Transmitter
PNL 25-04 R 400KHz	Ø 25 mm	BNC	400 KHz	Receiver
PNL 25-04 T 400KHz	Ø 25 mm	BNC	400 KHz	Transmitter
PNL 45-005 R 50KHz	Ø 45 mm	BNC	50 KHz	Receiver
PNL 45-005 T 50KHz	Ø 45 mm	BNC	50 KHz	Transmitter
PNL F19-012 R 120KHz	Focused Ø 19 mm	BNC	120 KHz	Receiver
PNL F19-012 T 120KHz	Focused Ø 19 mm	BNC	120 KHz	Transmitter
